Electric Suspended Scaffold
Electric Suspended Scaffold
Aser Makina Electric Suspended Scaffold Systems are multi-purpose platforms used for cladding, painting, plastering, and repair work on building facades. Manufactured in accordance with EN1808 standards, in sizes ranging from 1-8 meters, our suspended scaffolds save time and labor at construction sites with their easy assembly and relocation features.
Product Features

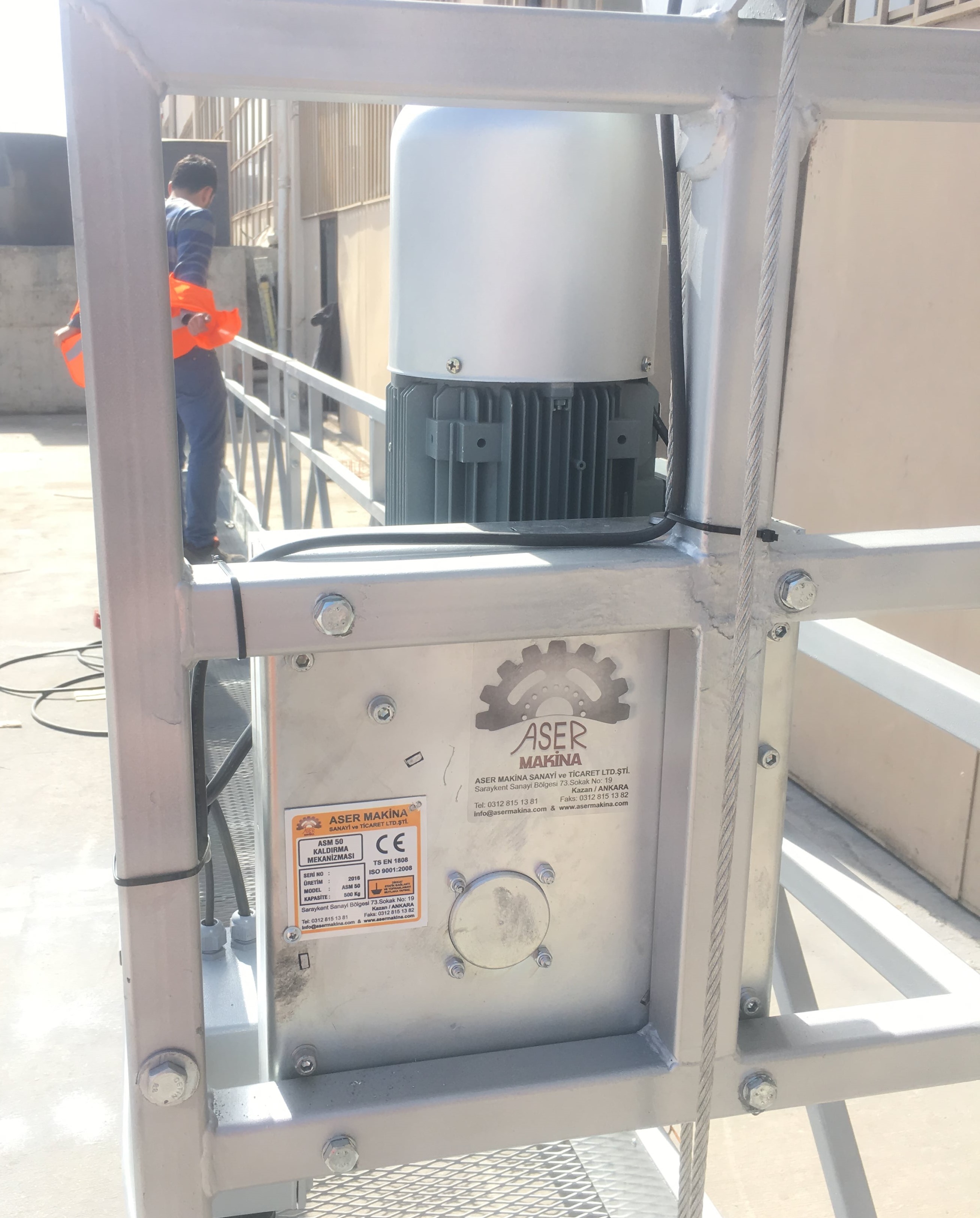

Steel Body Design
The automatic winding mechanism body and components are designed as steel through years of R&D.
Safe Working

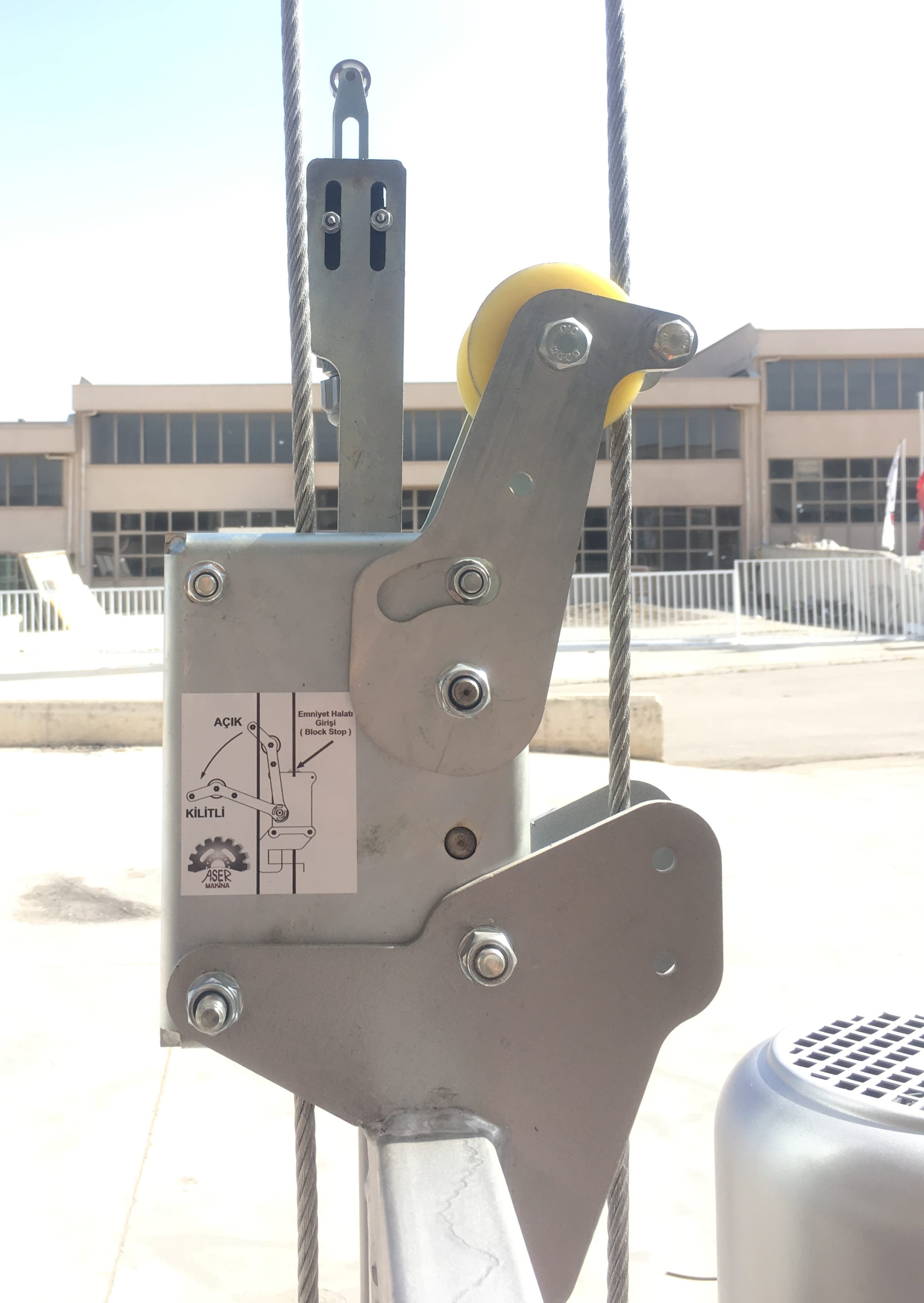

Magnetic brake, block stop, limit switches, and overload mechanism for safe working.
Easy Assembly
Easy disassembly and relocation save time and labor.
High Working Capacity
The rope-running mechanism allows very high working heights.
Multi-Purpose
Multi-purpose systems for cladding, painting, plastering, and repair.
Manual Descent
Manual descent capability during power outage.

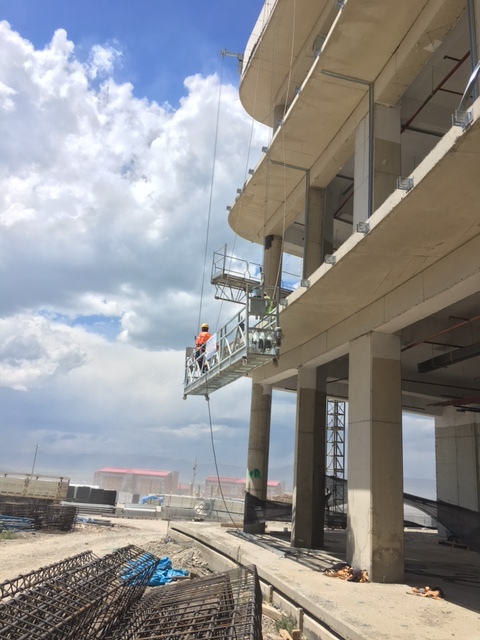

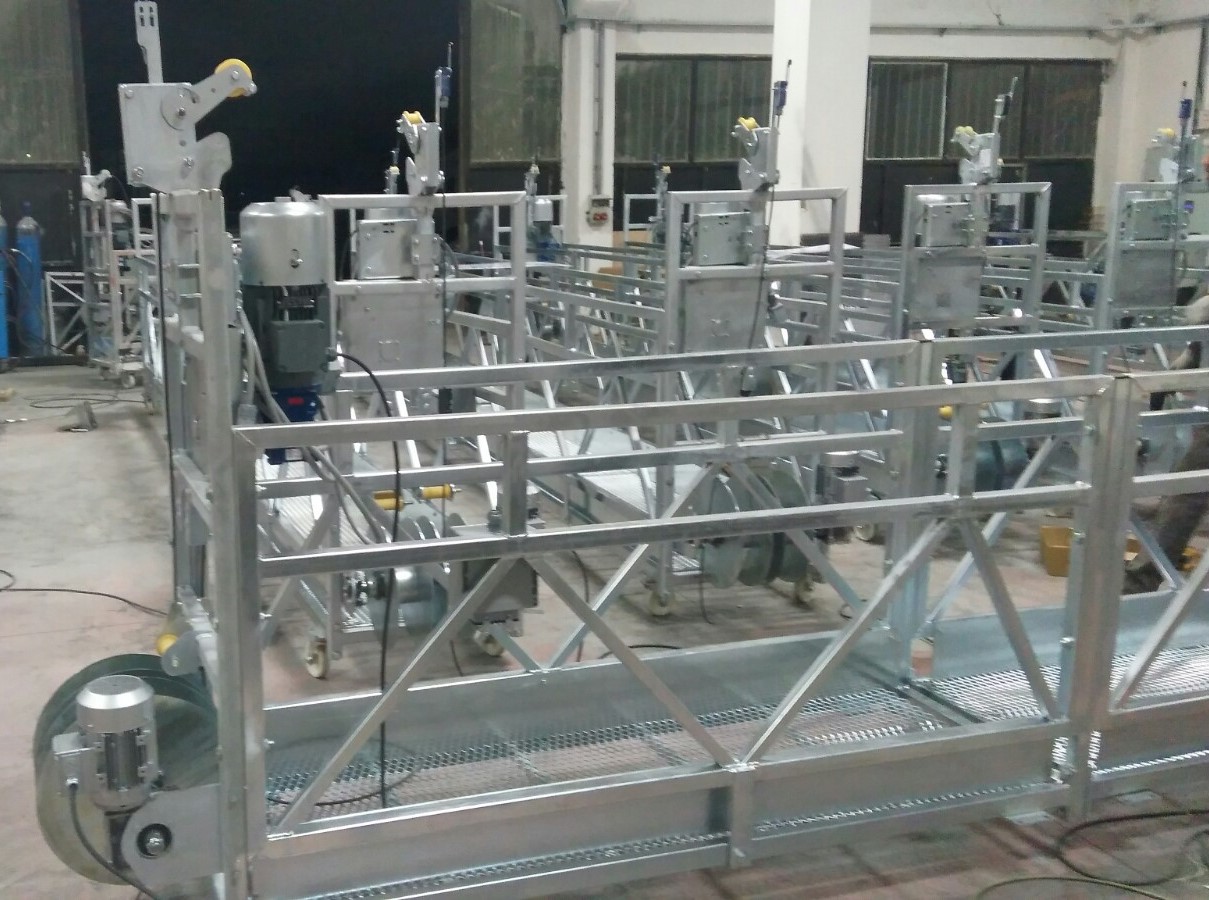

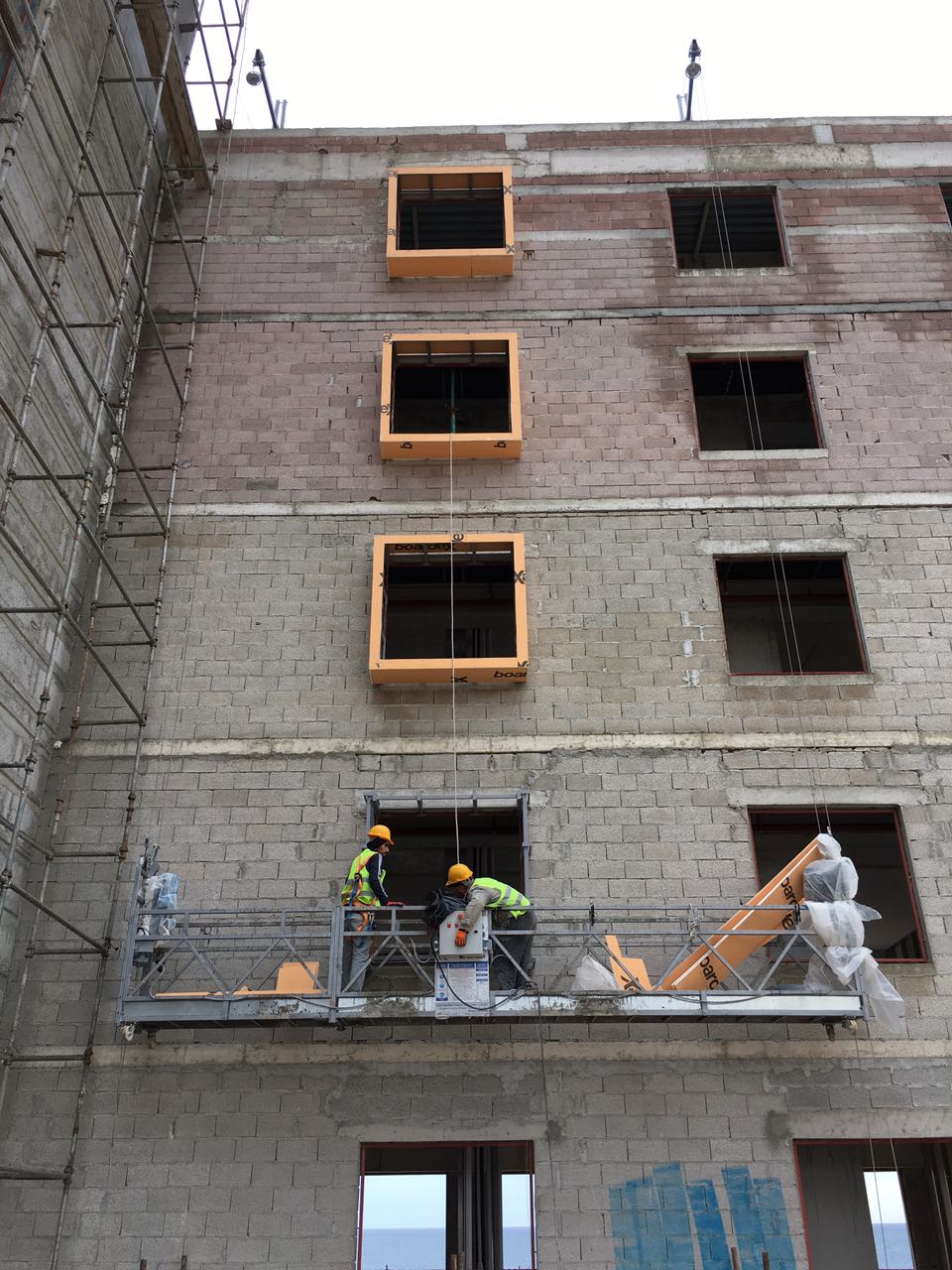

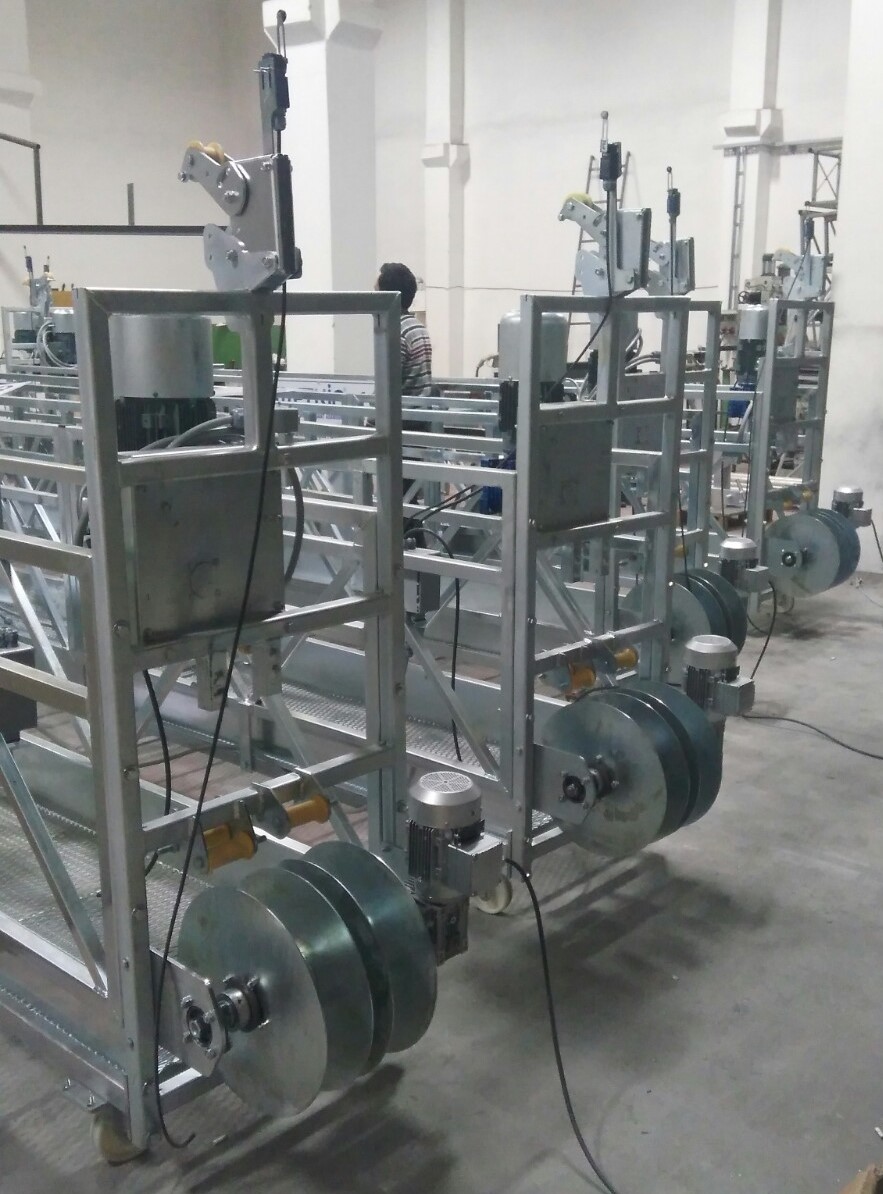

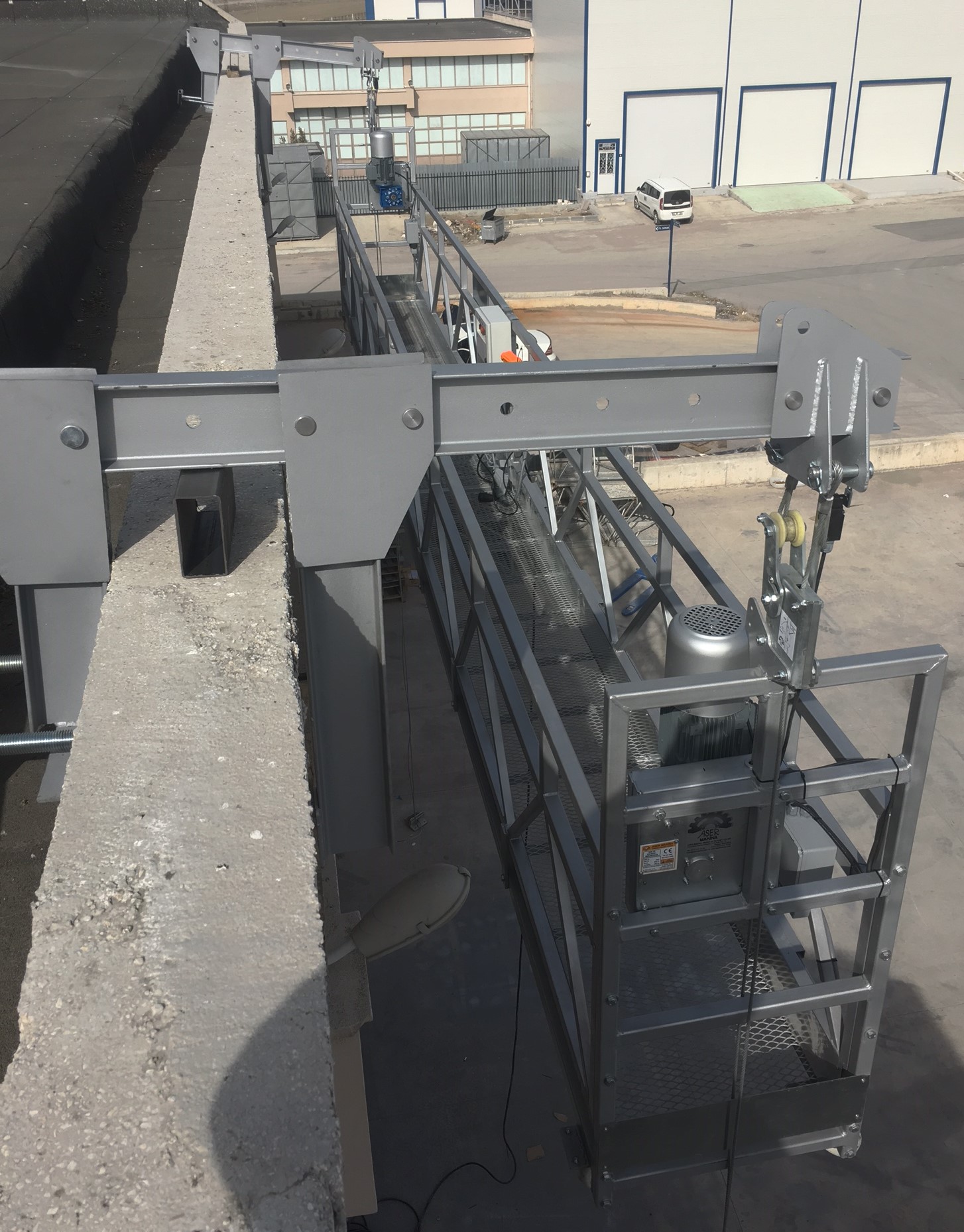

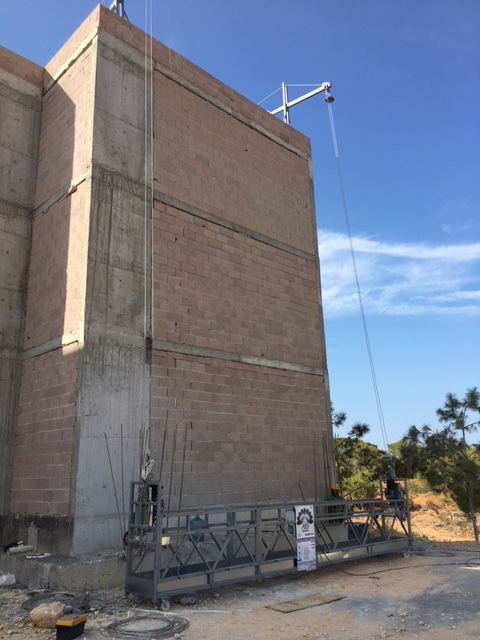

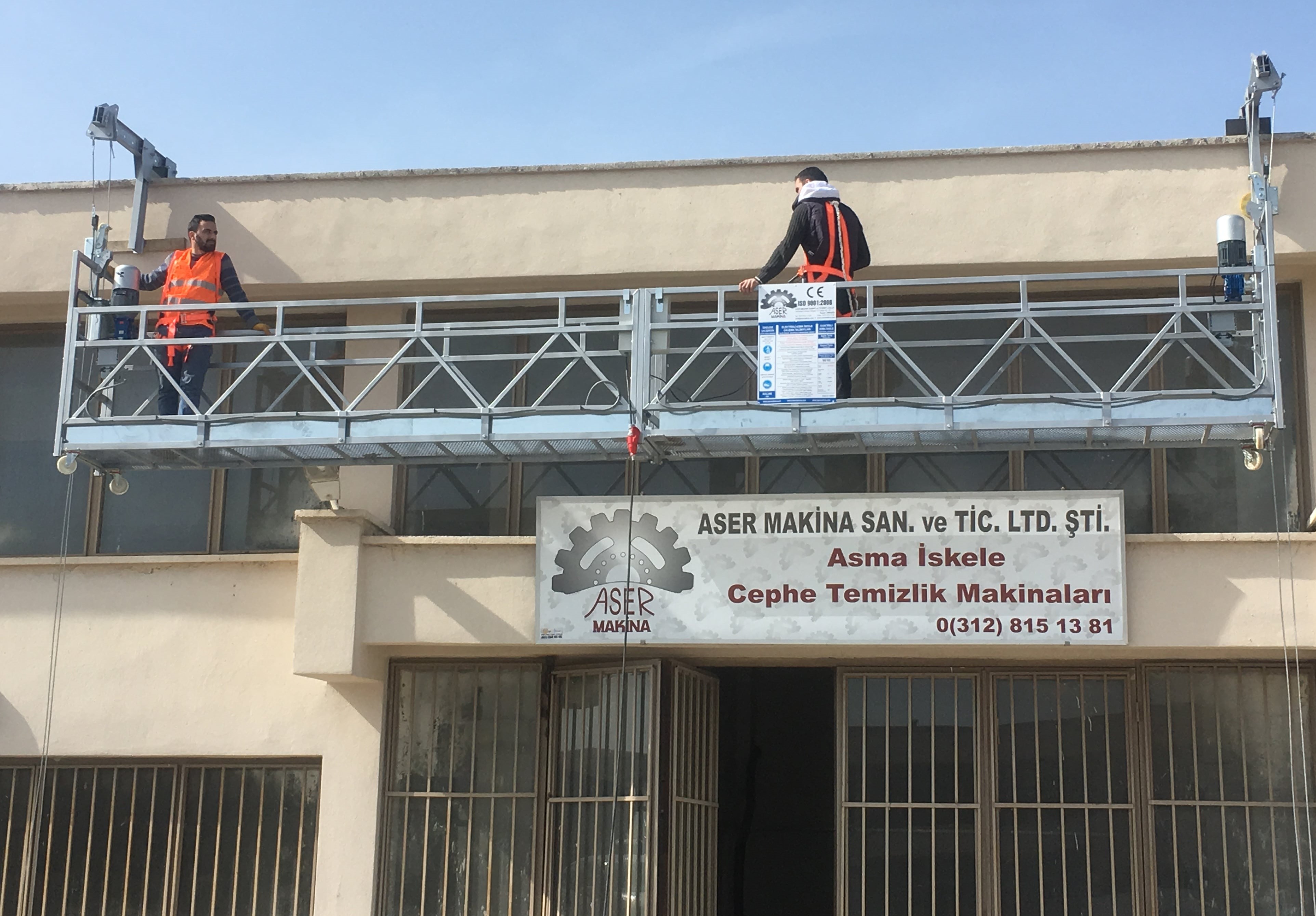

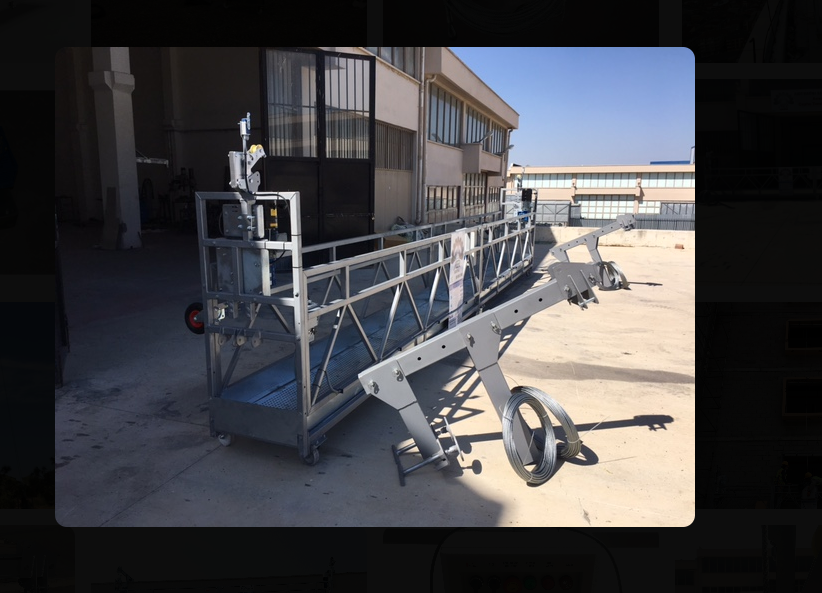

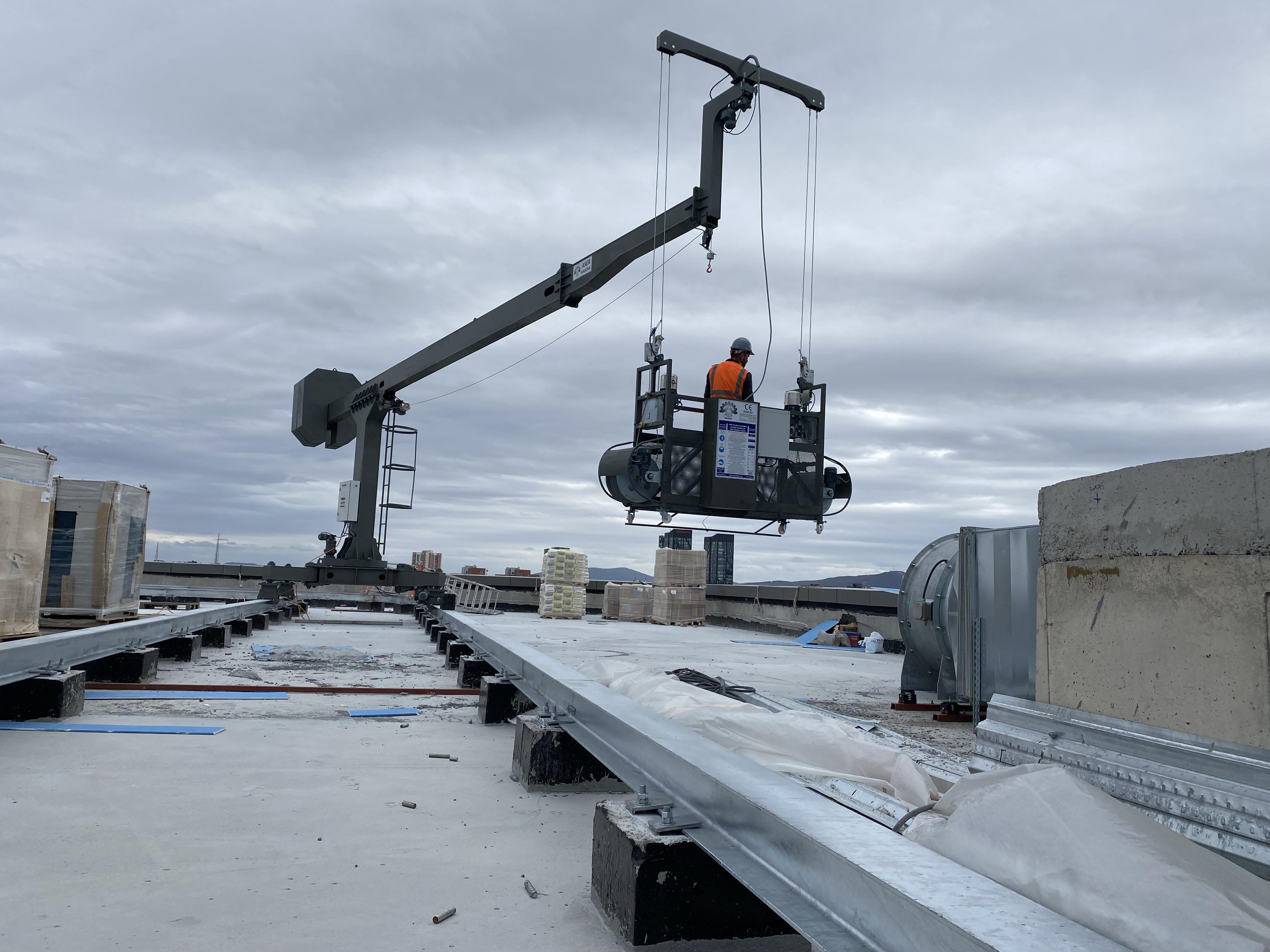

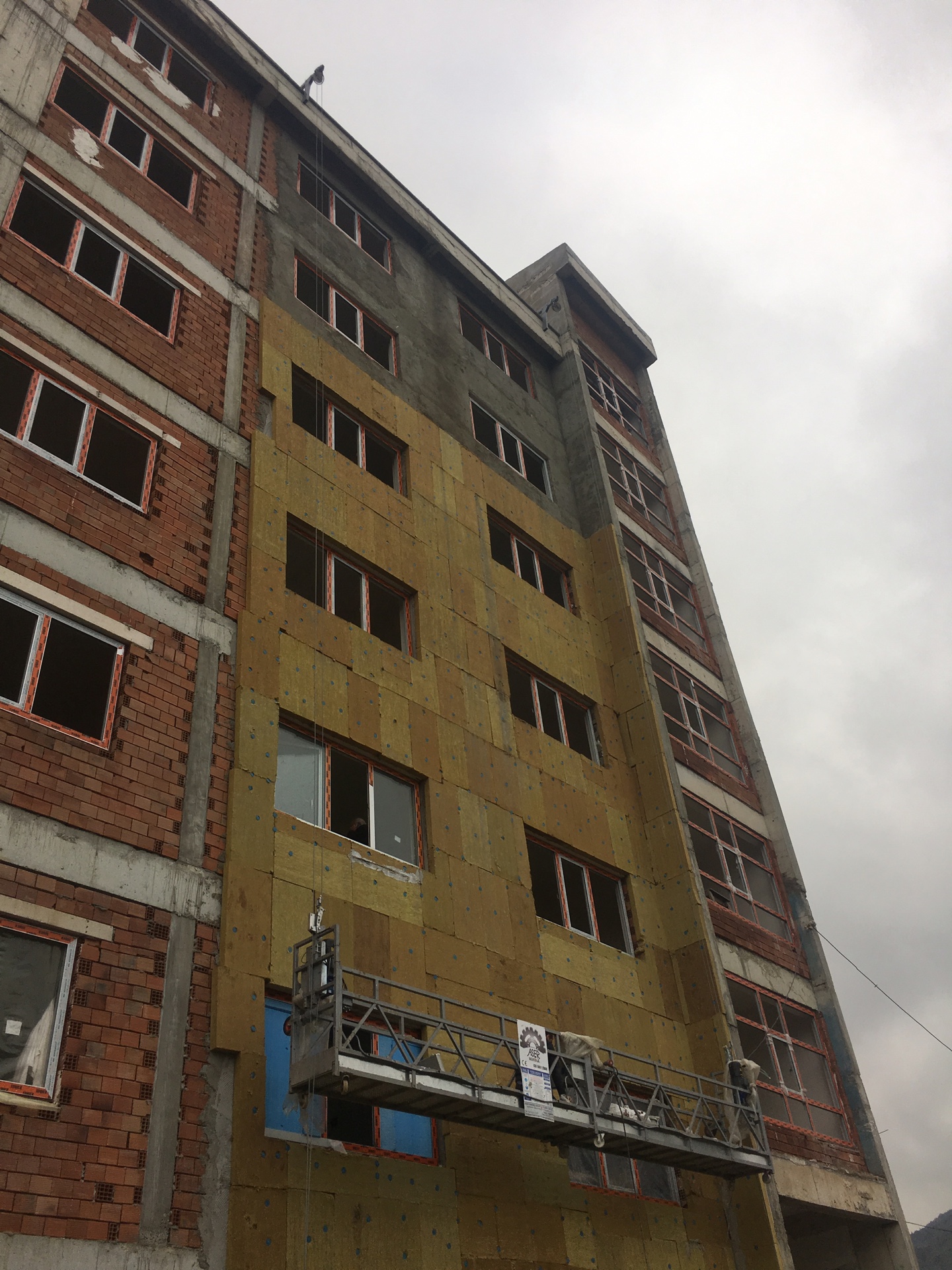

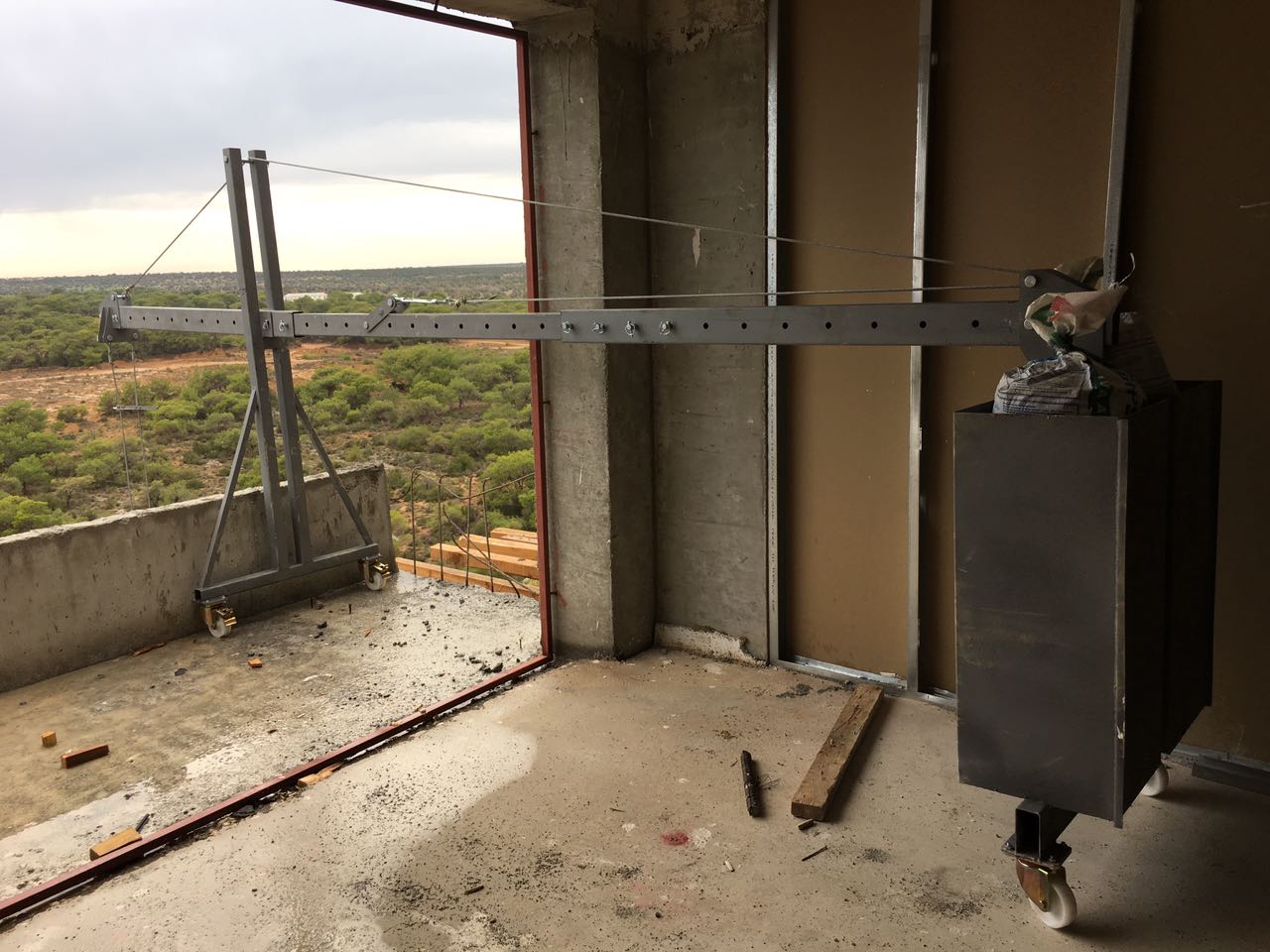

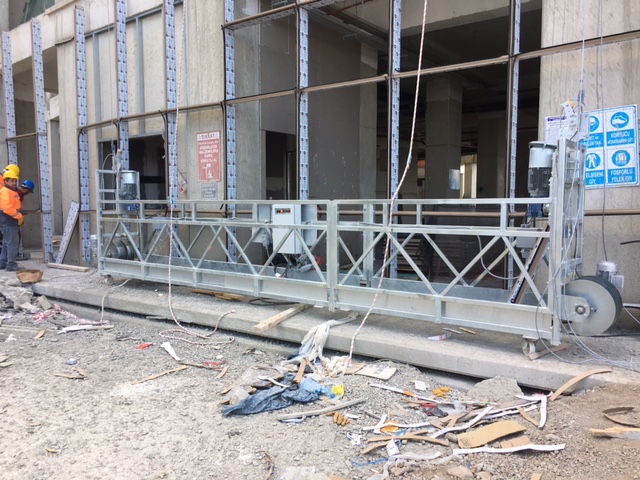

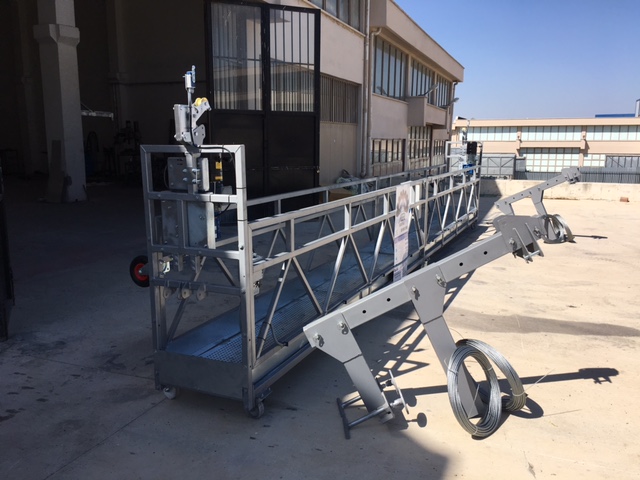

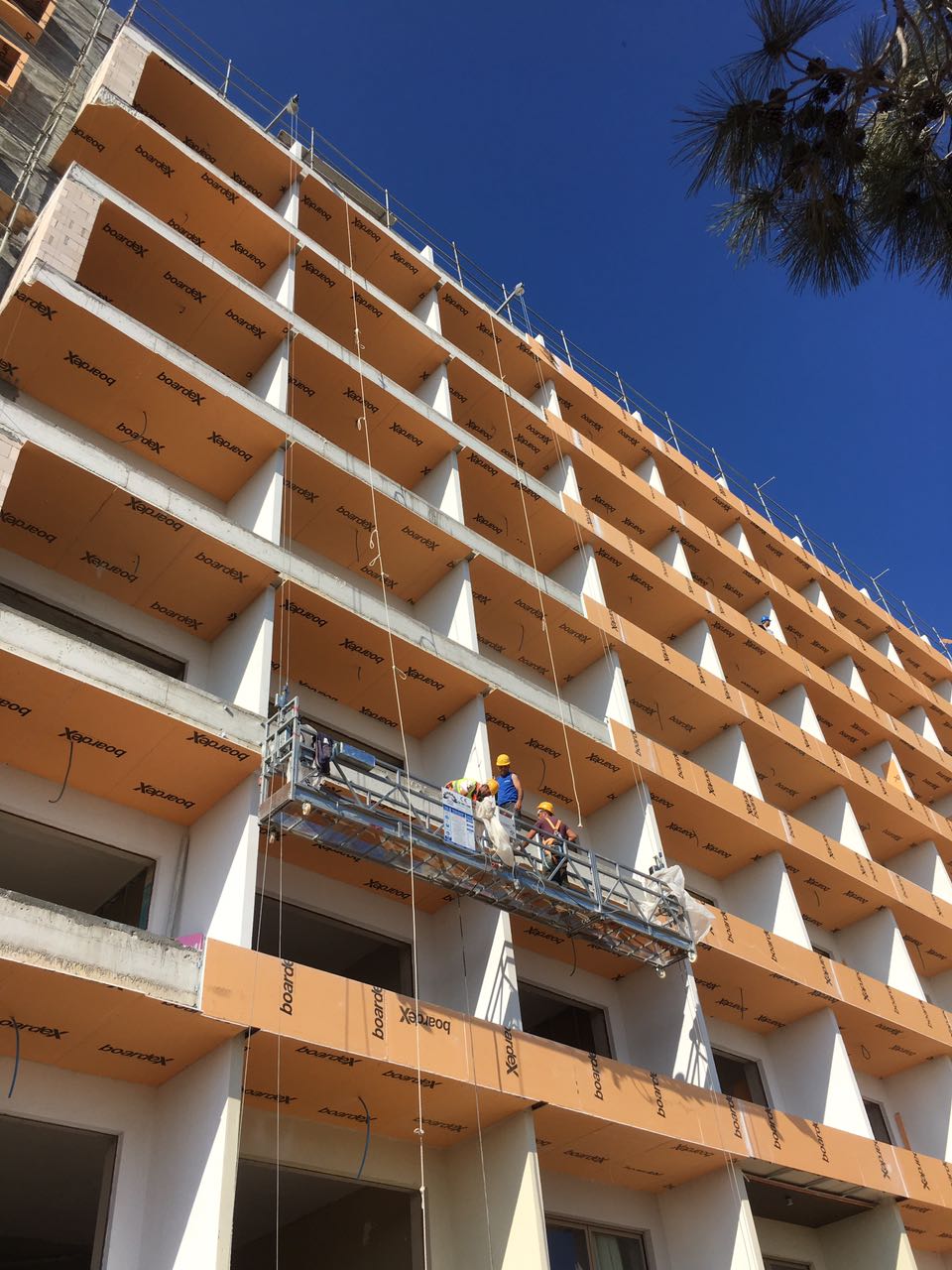

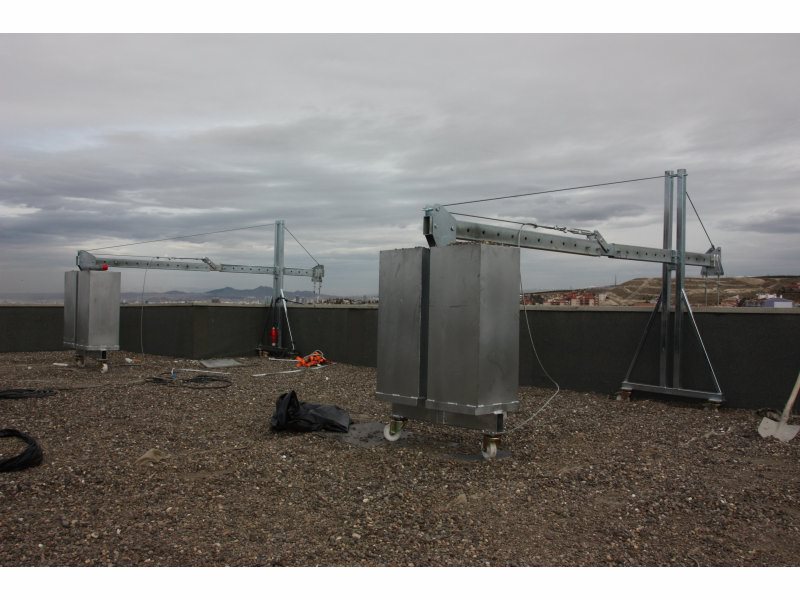

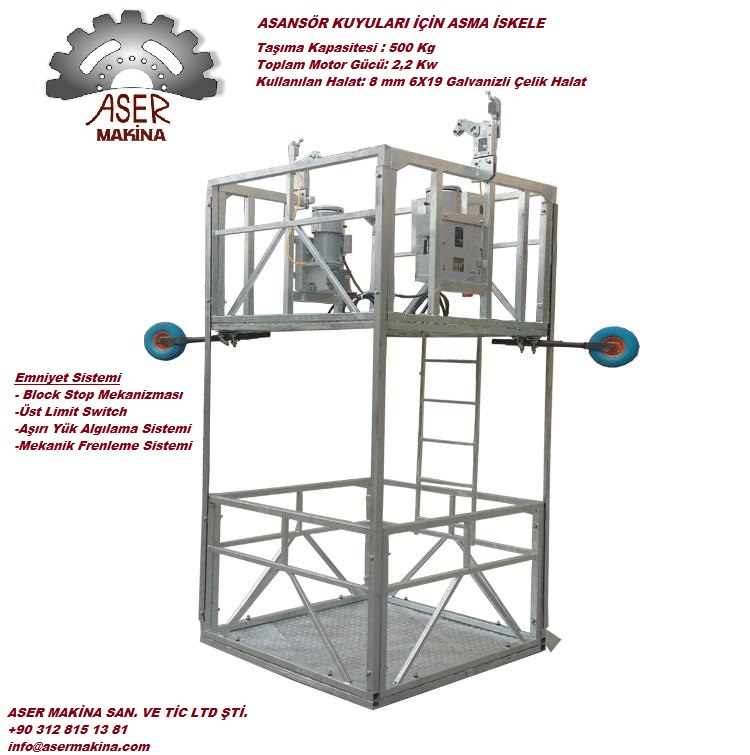

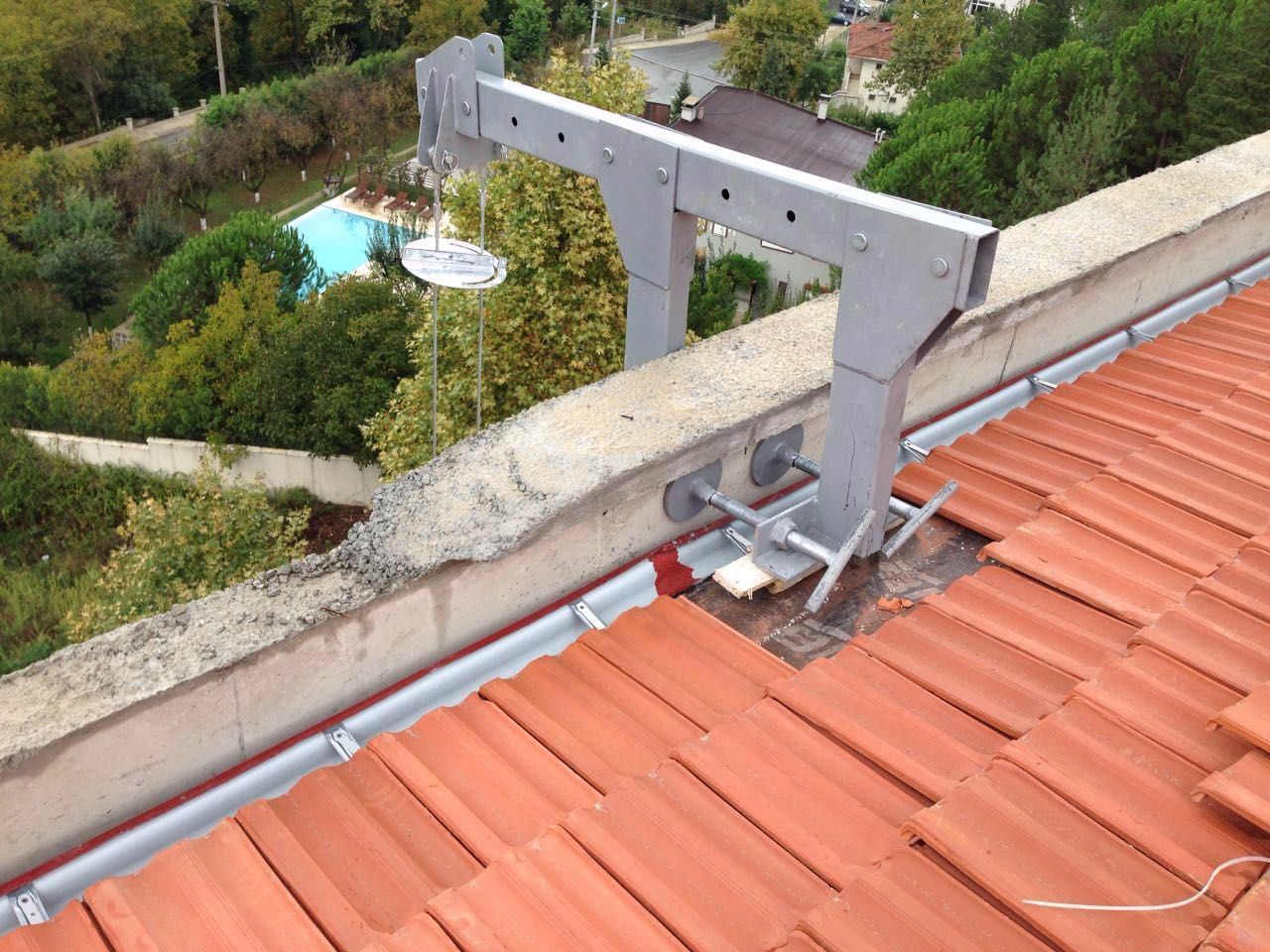

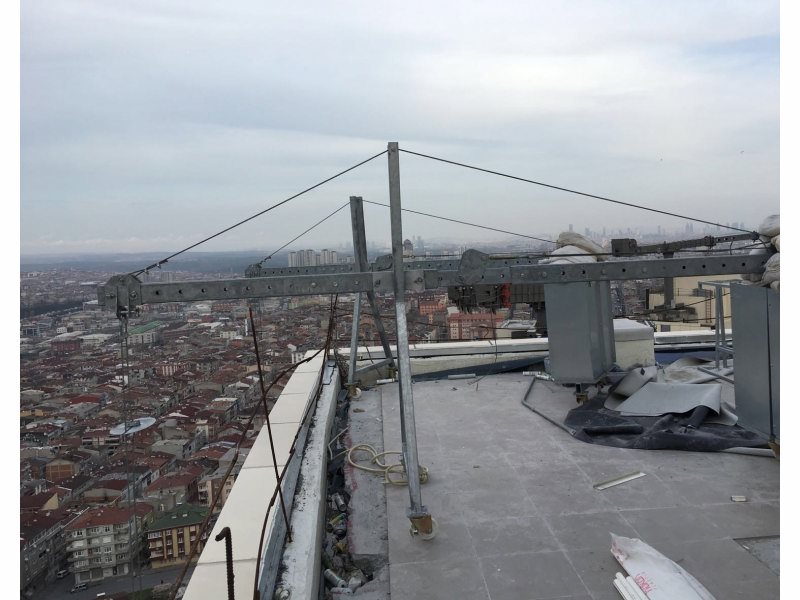

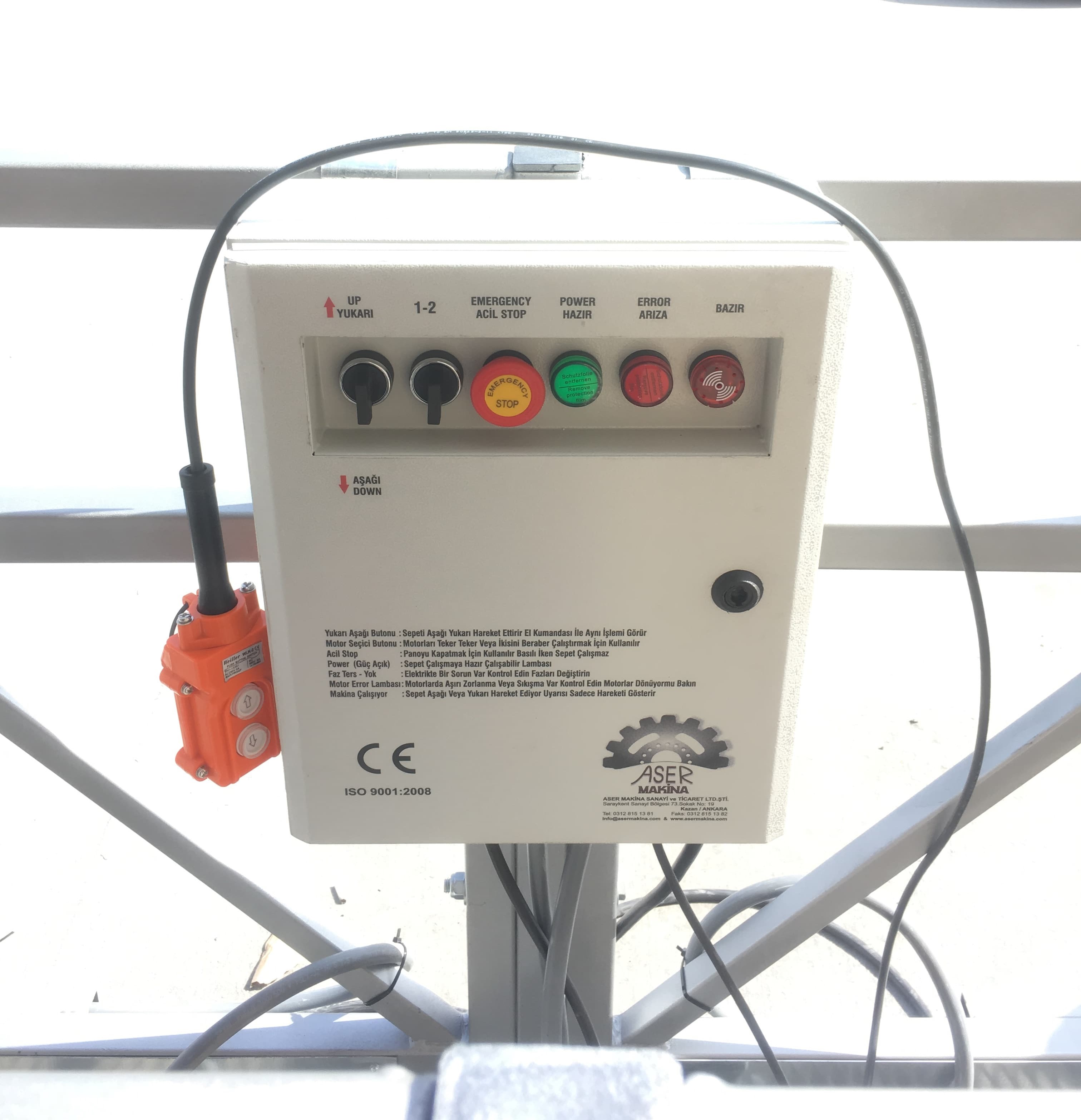

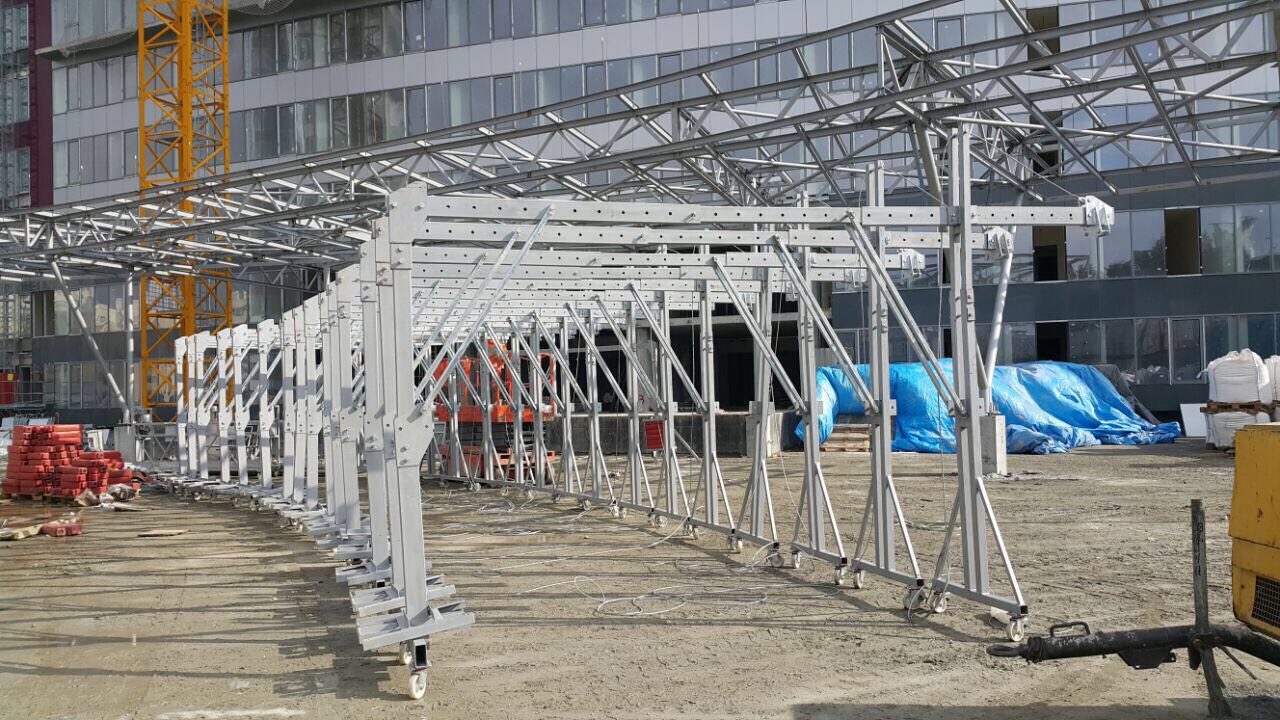

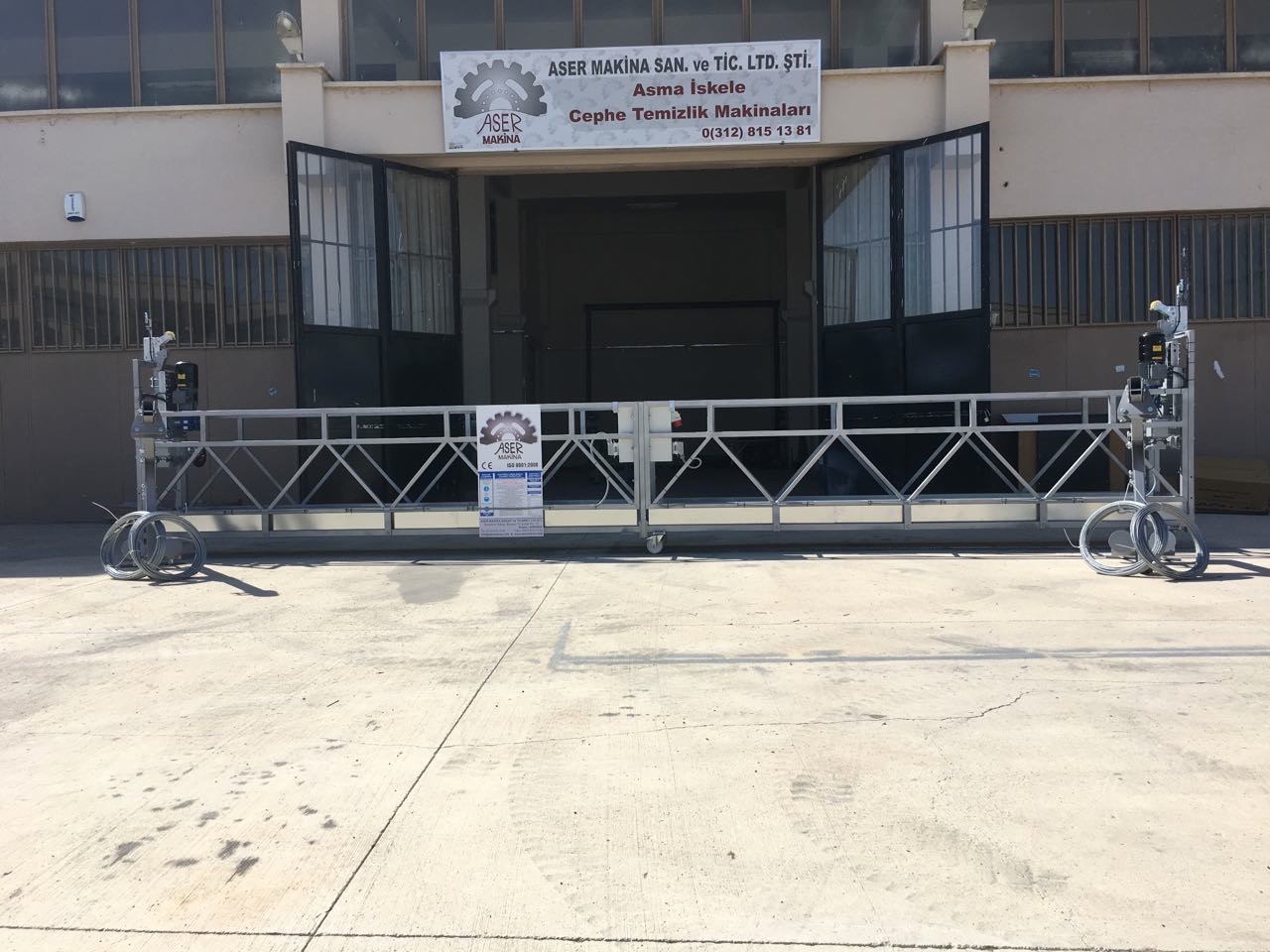

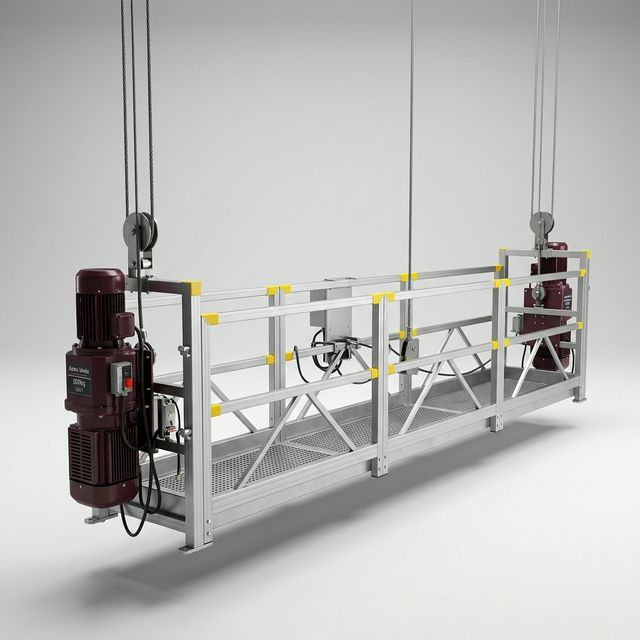

Product Gallery
Model Comparison
| TECHNICAL SPECS | ASM50 | ASM50 | ASM50 |
|---|---|---|---|
| Lifting Capacity | 150 KG | 500 KG | 750 KG |

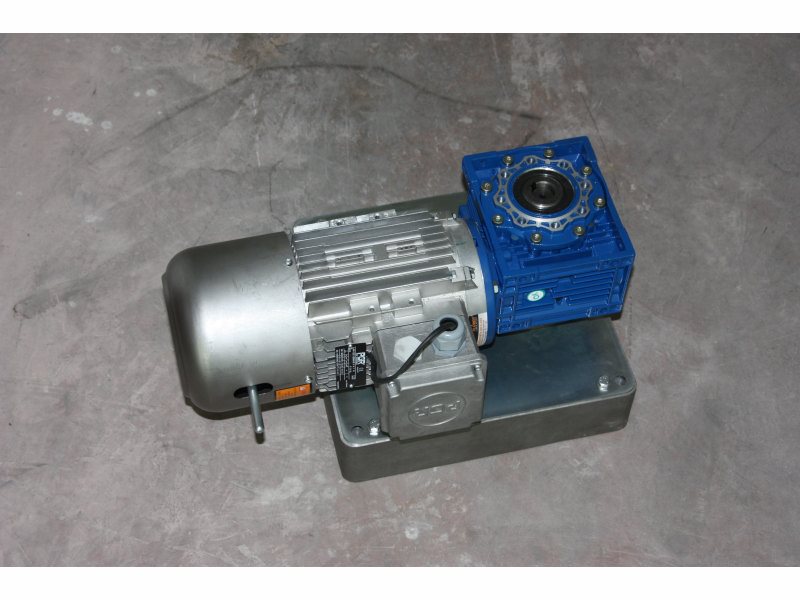

| Motor Power & Count | 1,1 kW (1 Unit) | 1,1 kW (2 Units) | 1,5 kW (2 Units) |
| Climbing Speed | 7 mt/dk | 7 mt/dk | 7 mt/dk |
| Platform Sizes (cm) | 100×66×110 | 200, 300, 400, 500, 600, 700, 800×66×110 | 200, 300, 400, 500, 600×66×110 |
| Safety System | Electromechanical Brake, Block Stop, Overload Mechanism, Limit Switch | Electromechanical Brake, Block Stop, Overload Mechanism, Limit Switch | Electromechanical Brake, Block Stop, Overload Mechanism, Limit Switch |

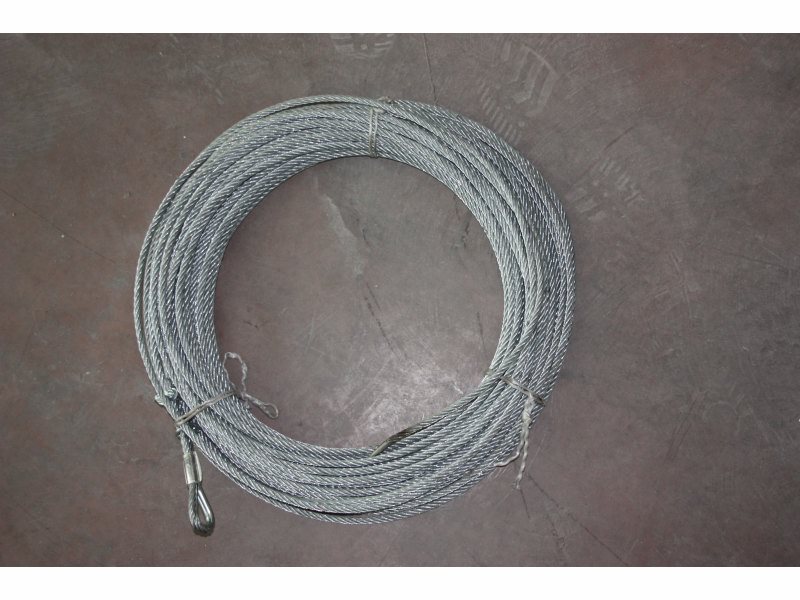

| Wire Rope | Ø8 mm (6×19) galvanized | Ø8 mm (6×19) galvanized | Ø8 mm (6×19) galvanized |
| Voltage | 380 V | 380 V | 380 V |
System Components
Fundamental changes to internal components have minimized failure risks seen in competitors.
Get information about our Electric Suspended Scaffold solutions.
Contact us for suspended scaffold solutions in size and capacity that suit your needs.
